All SE75 Series Drive Units are engineered with our "In-Line" drive design, to eliminate chain and sprocket reductions and comes with a 5 Year warranty. A hydraulic motor drives the auger through a sealed planetary gear reduction. The heavy duty all gear design of our planetary drives gives these units a long life with minimal maintenance and service costs.

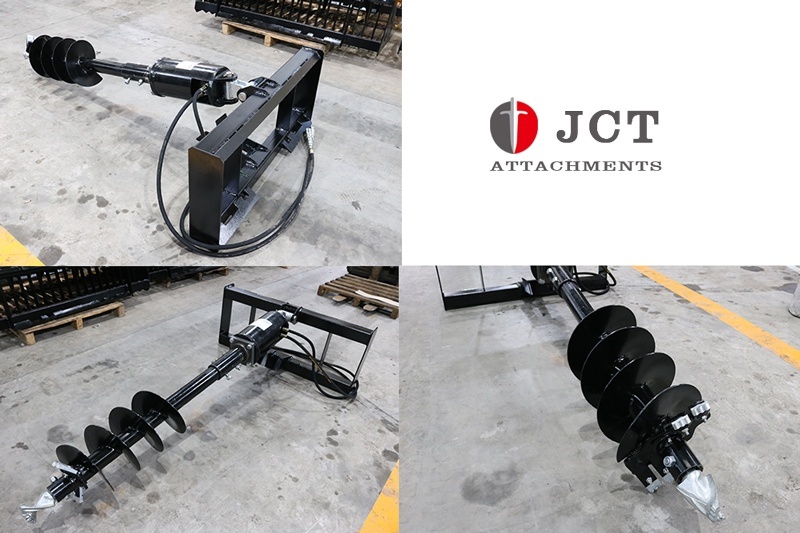

This unit is equipped for a Skid Steer loader and comes with a universal mounting plate, hoses, flat face couplers, cradle and spring hose kit assembly.
6 to 15 GPM
Wide variety of auger diameters, lengths and style for every digging application.
Extensions available for deeper digging.
Various mounts available for most applications.
We also offer drives for compact tractors, mini compact loaders, mini excavators, and telehandlers.
|
Model |
SE975 |
SE1475 |
SE1975 |
SE2475 |
|
Max. Auger Diameter |
24" |
30" |
36" |
36" |
|
Hydraulic Flow Required |
6-15 gpm |
10-25 gpm |
15-30 gpm |
20-35 gpm |
|
Min. Continuous Operating PSI |
3000 psi |
3000 psi |
3000 psi |
3000 psi |
|
Max. Back Pressure |
1500 psi |
1500 psi |
1500 psi |
1500 psi |
|
Output Torque (2000 psi) |
1000 ft-lb |
1600 ft-lb |
1856 ft-lb |
2308 ft-lb |
|
Output Torque (2500 psi) |
1277 ft-lb |
2000 ft-lb |
2328 ft-lb |
2895 ft-lb |
|
Output Torque (3000 psi) |
1500 ft-lb |
2377 ft-lb |
2769 ft-lb |
3451 ft-lb |
